Uniview

UNV PoE Injector

(No reviews yet) Write a Review
SKU:
PWR-DC5611-P
$116.99

Call (817)498-9797 for Availability

Description

  • Features
    • PSE
      • Input: AC 100-240V~ 50/60Hz 2AMax
      • Output: DC 56V/1.1A (+2%,-4%)
    • Protection/ Environmental
      • Protection: Output over Current protection: 1.2A
      • Short circuit protection
      • Surge protection power input port meets EN 61000-4-5 criterion B:
      • L-N 2KV
      • l,N-PE 4KV
      • Output communication port: 1kV differential mode (criterion B)
    • Environmental
      • Storage Temperature: -40°C ~ 70°C (-40°F~158°F)
      • Operating Temperature: -20°C ~ 60°C (-4°F ~140°F)
      • Working humidity: <95% RH
    • Physical Properties
      • Weight: 473g (1.04lb)
      • Dimension (LxWxH) : 183mmx70.8mmx37mm(7.20"x2.79"x1.46")
      • Installation mode: Plane installation
      • Color: Black
      • Input plug: 3-pin plug
      • Power Out Pin: Endspan 1.2(+),3.6(-) Midspan 4.5(+), 7.8(-)
      • Output plug: 18.5+.5mm (Network Cable Connector)
      • Certification: CCC,CB,CE,FCC,UL
View AllClose

Related Products

UNV 60W PSE PoE Injector
Quick view

UNV 60W PSE PoE Injector

Preferred Power Products

$138.99
Features Input: AC 100-240V ~ 50/60Hz 2AMax Output: DC 56V1.1A (+2%, -4%) Protection: Output over current protection:1.1A Short circuit protection (Yes) Surge protection power input port meets EN...
NSW2010-24T2GC-POE-IN
Quick view

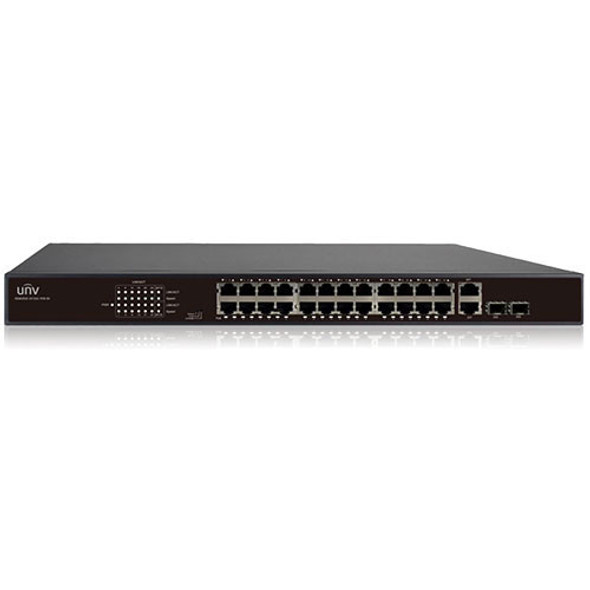

UNV 24 Port Network PoE Switch
